LNG
LNG
X-DF for Liquefied Natural Gas
A lower carbon fuel with significantly lower air pollution and potential for carbon-neutral production.
Using WinGD’s dual-fuel X-DF engines gives operators flexibility in reducing emissions.
Fossil LNG offers an immediate 15-20% reduction in greenhouse gas emissions. By blending or replacing fossil LNG with carbon-neutral synthetic or bio-LNG, operators can reduce their emissions further without modification.
For most vessel applications, the low-cost, highly efficient and reliable fuel injection concept used by WinGD’s low-pressure dual-fuel LNG engines offer several advantages over other dual-fuel engine concepts.
For vessels with the highest power demands – including ultra large container vessels, very large crude carriers and very large ore carriers – the Diesel cycle, high-pressure X-DF-HP delivers the power density and ease of integration needed to outperform all other engine concepts on cost and emissions.
Let's talk LNG
What are low-pressure and high-pressure dual-fuel LNG engines?
Dual-fuel LNG engines are designed around two different combustion concepts: the Diesel cycle and the Otto cycle. The key distinction lies in how LNG is introduced into the cylinder and how combustion is initiated.

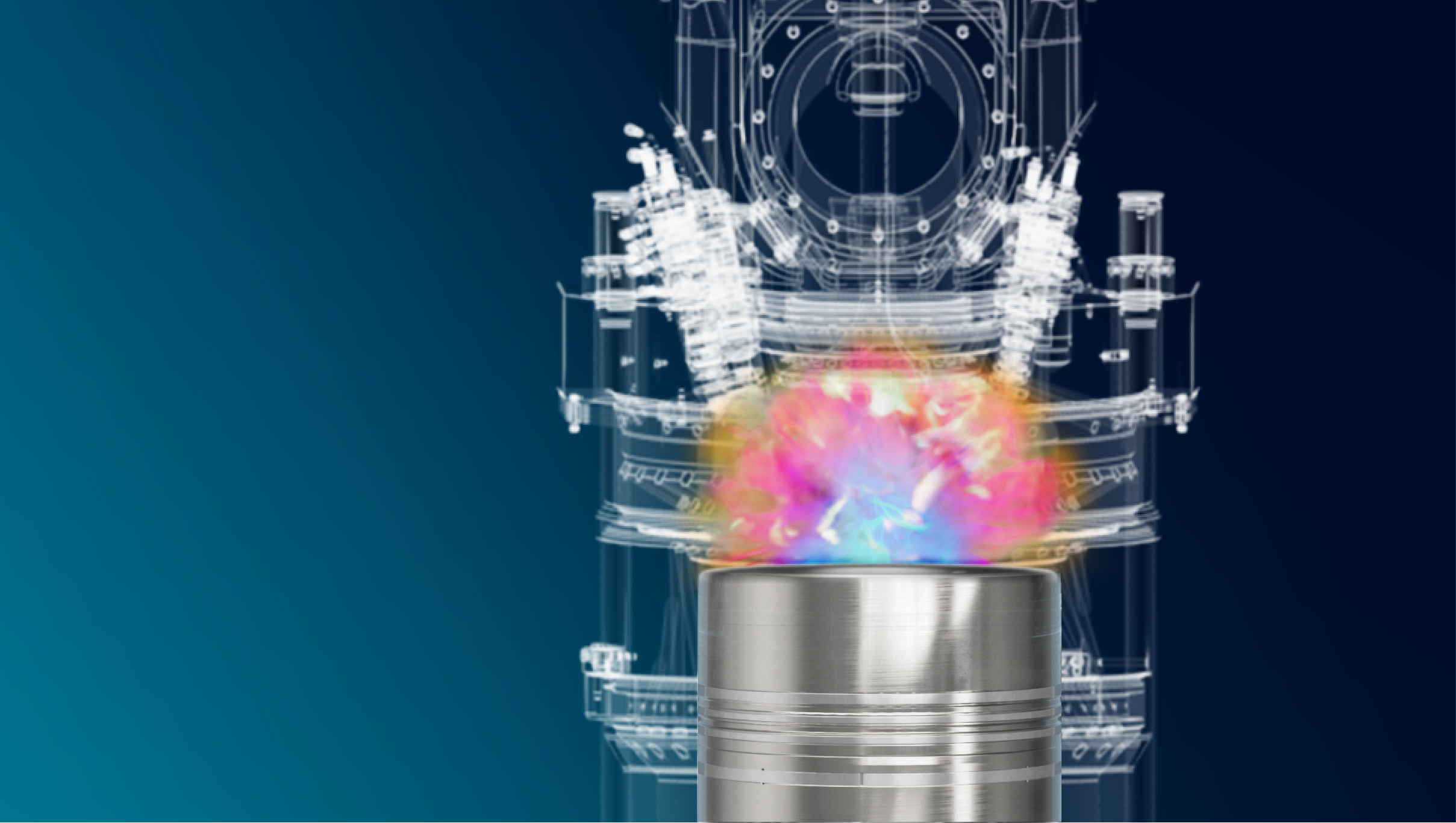

Otto cycle (low-pressure admission)
Low-pressure dual-fuel engines operate on a lean-burn Otto cycle.
In this concept, LNG is admitted to the combustion chamber at low pressure before piston compression begins. Combustion is then initiated by a high-pressure injection of pilot fuel, resulting in lower combustion temperatures and reduced emissions.

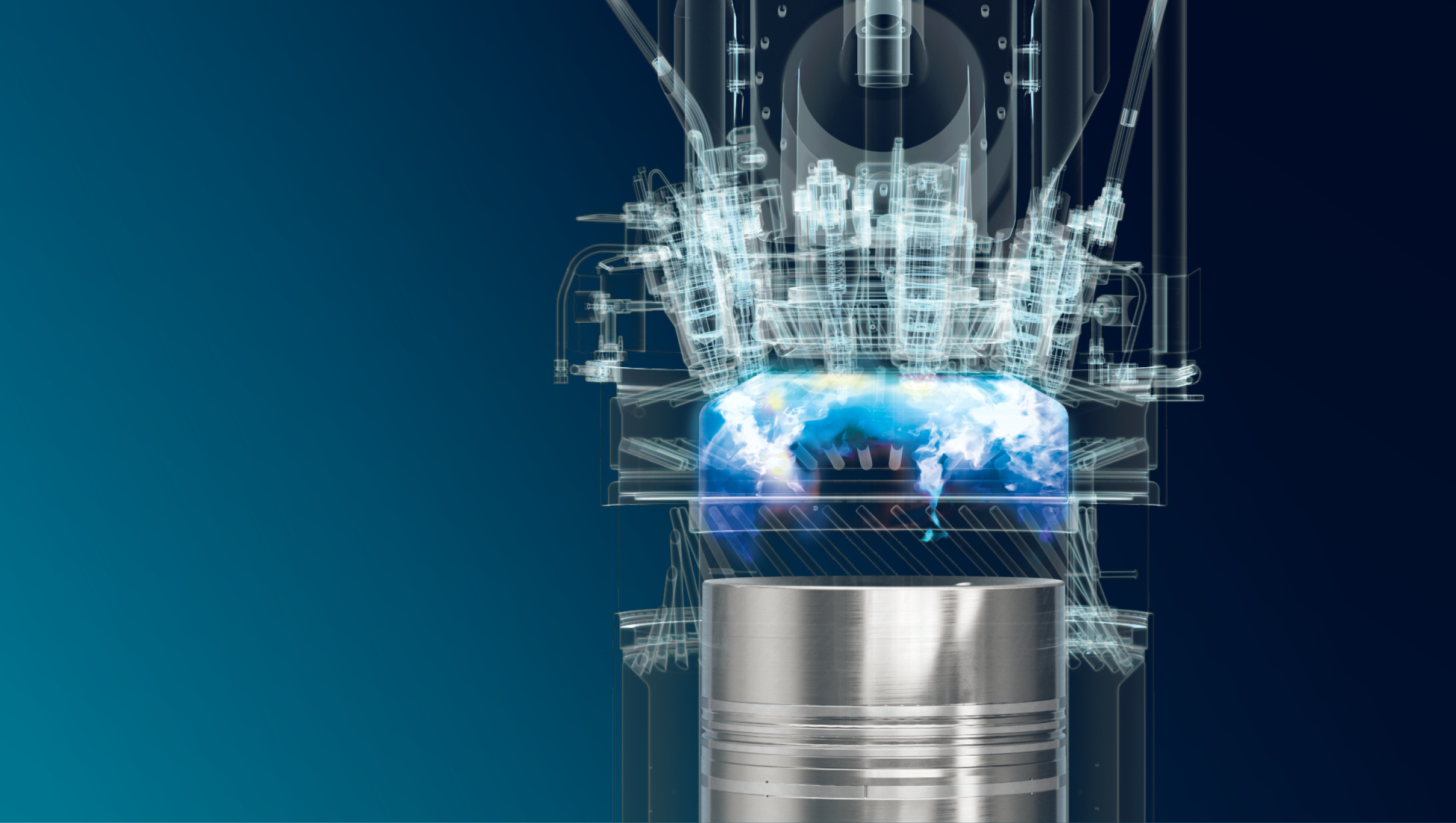

Diesel cycle (high-pressure injection)
High-pressure dual-fuel engines follow the same combustion principle as conventional low-speed diesel engines.
LNG is injected directly into the combustion chamber at very high pressure, alongside a small amount of pilot fuel. The pilot fuel ignites the gas, enabling robust combustion and high efficiency across a wide operating range.
Cutting-edge performance improvements for X-DF LNG engines
WinGD continues to improve the marine market’s most well-established low-pressure dual-fuel LNG engines with the addition of new X-DF2.0 technologies, delivering greater efficiency, improved emissions compliance and increased operational flexibility.
Find out more
-
Lower
operating costs
-
Reduced
Methane slip and CO2 emissions
-
Proven
design for reliability and safety
Vessels this fuel is appropriate for
-
Tanker
-
Container Vessel
-
Bulk Carrier
-
Multipurpose Vessel
-
Gas Carrier
-
PCTC
Featured LNG solutions
X72DF-2.2
Designed to meet the needs of LNG carriers
WinGD’s low-pressure dual-fuel technology is a sustainable propulsion solution that runs safely, reliably and efficiently on gas as a cleaner option over conventional heavy fuel oil or diesel oil. Further optimising the standard X-DF portfolio, WinGD now offers X-DF2.0 technology providing reductions to both fuel consumption and methane slip in gas mode. iCER – the Intelligent Control by Exhaust Recycling system, is the first application of X-DF2.0.
Featured fuel flexibility news
Browse all
WinGD and OPearl LNG Ship Management Sign 15-Year Service Deal for Fleet Reliability
Find out more

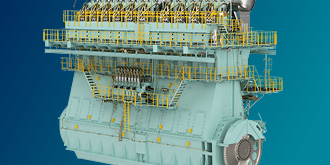

WinGD unveils high-pressure dual-fuel LNG engine
Find out more

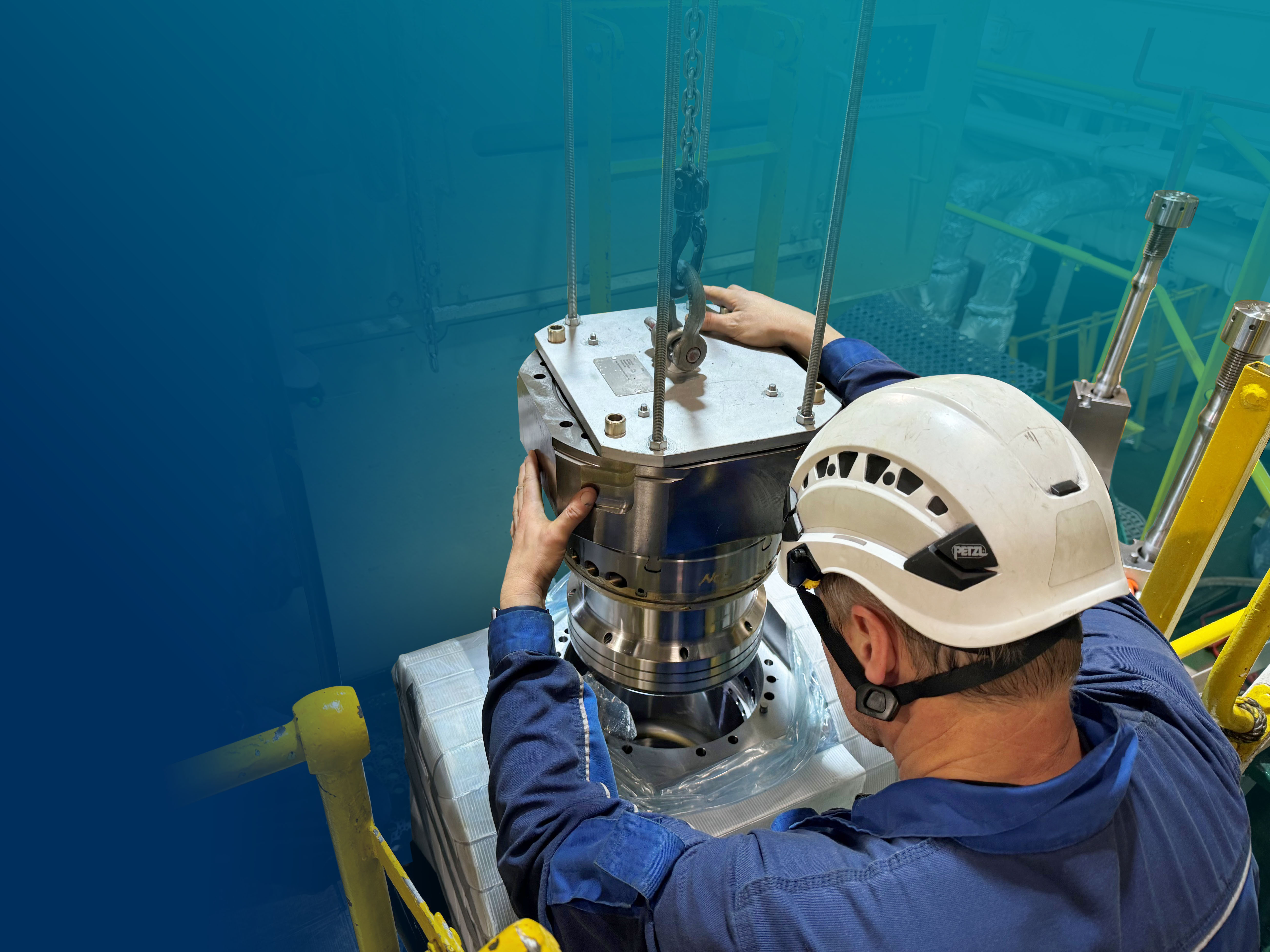

WinGD and Panasia to deliver emissions upgrades for X-DF dual-fuel LNG engines
Find out moreRead more about our fuel options
Browse all-
BrochuresWinGD LNG - FAQ Booklet
12 February 2025
-
BrochuresX-DF FAQ Brochure
05 March 2024
-
BrochuresWinGD Ammonia - FAQ Booklet
12 February 2024
Fuels
Ammonia
A carbon-free fuel with potential for significant reductions in energy intensity
Fuels
Methanol
A carbon-neutral energy source already used as a marine fuel and with potential for renewable production.
Fuels
Ethanol
A widely available and cost-effective biofuel with significant emissions reduction potential.
Fuels
LPG
A lower carbon fuel with reduced air pollution
WiDE
WinGD Integrated Digital Expert
WinGD’s Integrated Digital Expert (WiDE) system is a comprehensive performance monitoring system that supports crew on vessels and on shore by delivering business-enhancing, actionable insights from engine and ship data.
X-EL
Energy Management
WinGD’s deep engine expertise and hybrid power capabilities help ship and powerplant operators to configure, integrate and manage holistic energy systems around the main engine.
X-DF
Dual Fuel Design
WinGD is a pioneer in modern dual-fuel technology for two-stroke marine engines, with LNG engines in operation since 2016.
